Features

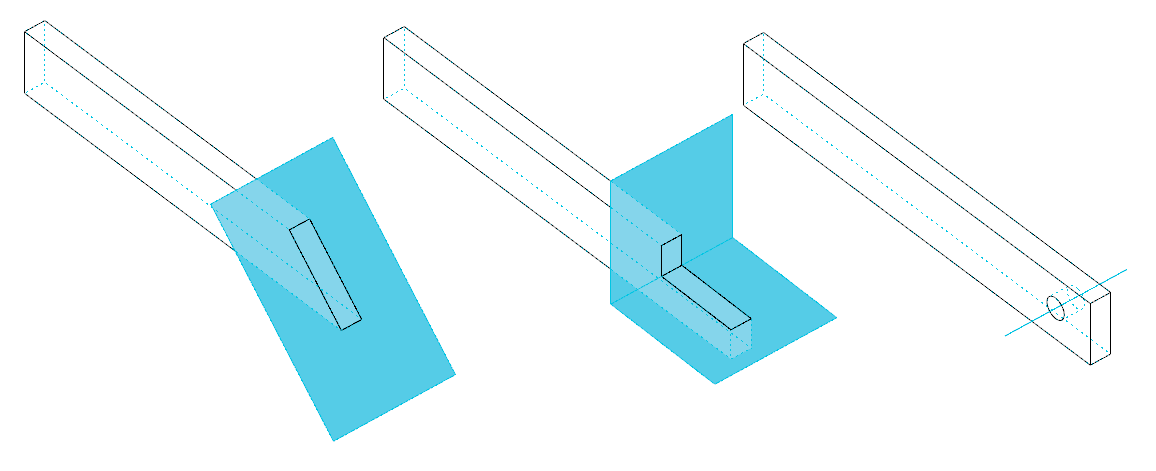

Features are additional geometric operations on Beams:

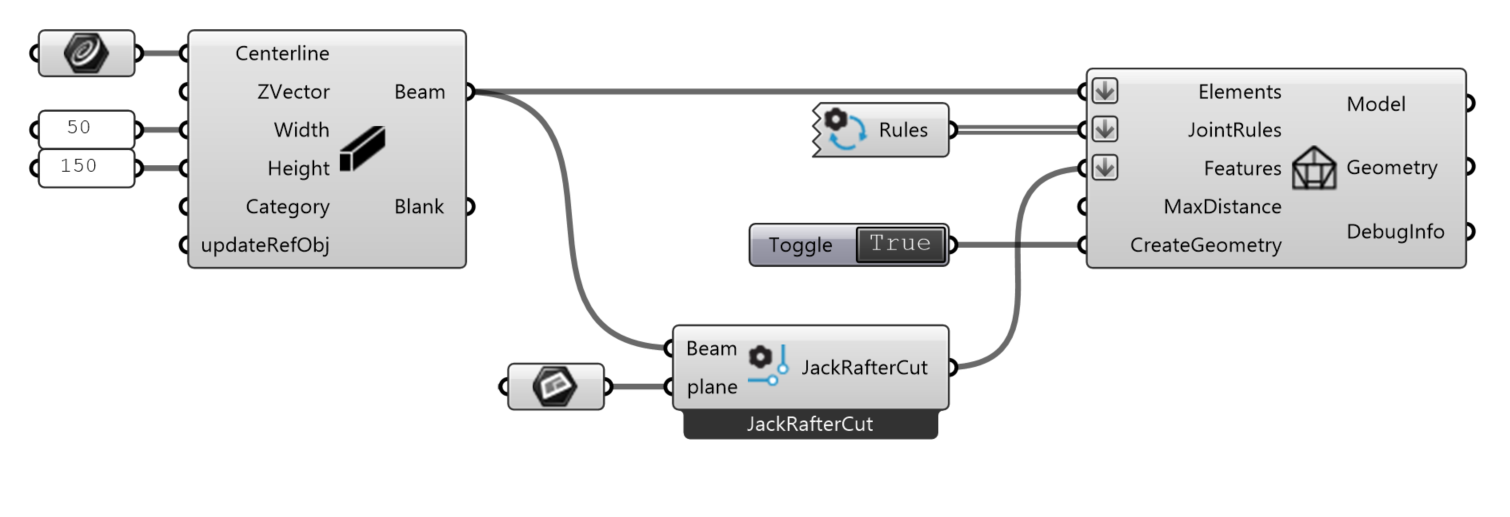

Jack Rafter Cut Feature

JackRafterCut feature cuts beam with a plane. The part of the beam lying on the z-positive side of the plane will be removed.

• Beam : the beam to be trimmed.
• Plane : the plane to trim the beam as a surface.

Plane angle

Angle between the cutting plane and the beam axis must be > 0.01 and < 179.9.

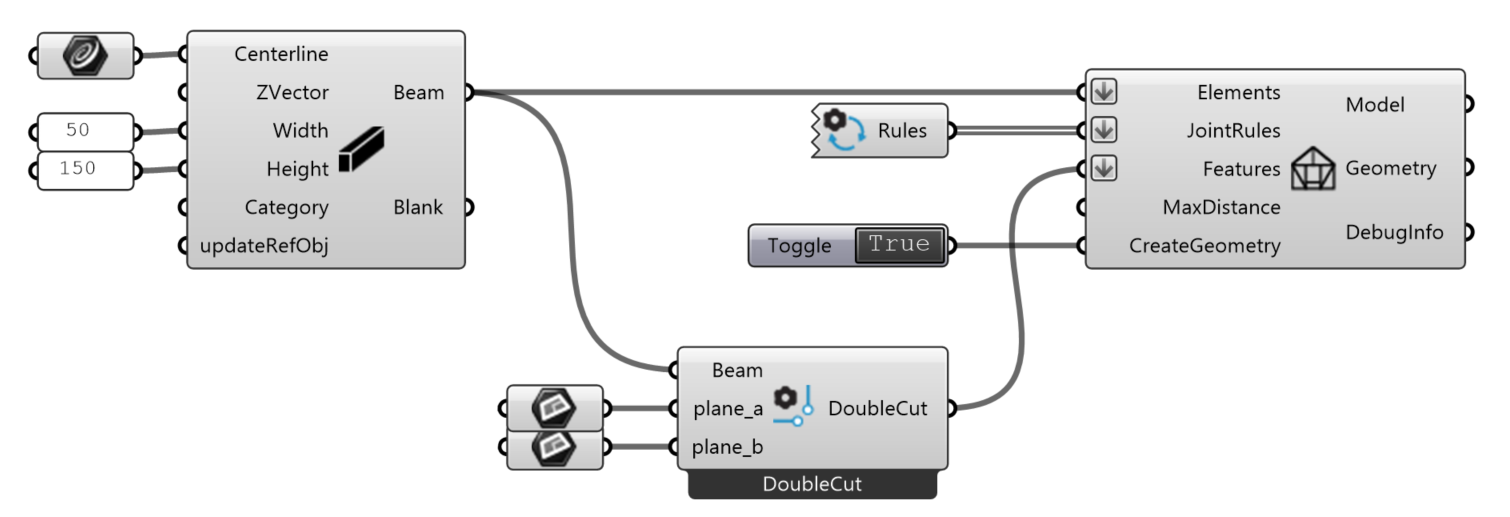

Double Cut Feature

DoubleCut feature cuts beam with two planes. The part of the beam lying on the z-positive sides of both planes will be removed.

• Beam : the beam to be trimmed.
• Plane_a : the first plane to trim the beam as a surface.
• Plane_b : the second plane to trim the beam as a surface.

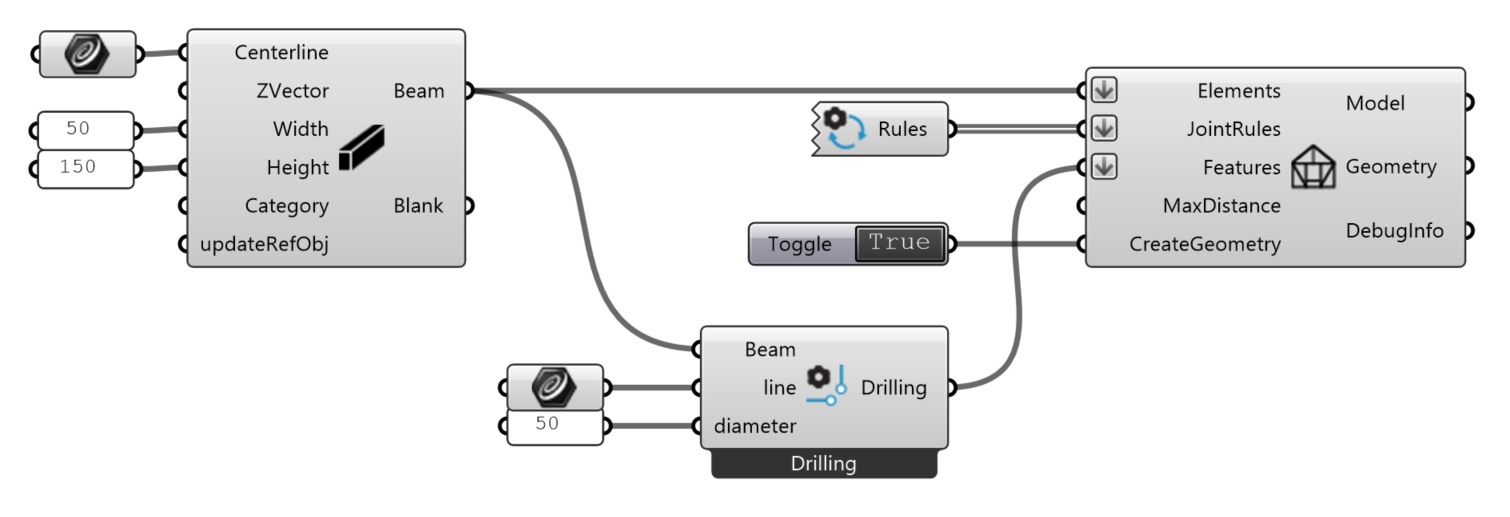

Drilling Feature

Drilling feature is a boolean operation to subtract a cylindrical hole from a beam.

• Beam : the beam to be drilled.
• Line : the axis of the hole as a line
• Diameter : the diameter of the hole

The output Feature is to be used as input for the Model component. See model.
