Beams Showcase

This simple example shows you how to work with beams and programmatically create them using the constructors of the Beam class.

from functools import lru_cache
from math import cos
from math import pi
from math import radians
from math import sin

from compas.geometry import Frame
from compas.geometry import Point
from compas.geometry import Polygon
from compas.geometry import Rotation
from compas.geometry import Vector

from compas_cadwork import Transaction
from compas_cadwork.elements import Beam


def frame_with_point(frame: Frame, point: Point) -> Frame:
    new_frame: Frame = frame.copy()
    new_frame.point = point
    return new_frame


@lru_cache
def create_hexagon_section(radius: float) -> Polygon:
    points: list[Point] = []
    for i in range(6):
        angle = i * (2 * pi / 6)
        x = radius * cos(angle)
        y = radius * sin(angle)
        points.append(Point(x, y))
    return Polygon(points)


with Transaction():
    frame = Frame(Point(0, 0, 0), Vector(0, 1, 0), Vector(0, 0, 1))

    for i in range(4):
        # Circular beam
        circular = Beam.circular(
            frame=frame_with_point(frame, Point(0, 0, 1000)),
            length=4000,
            diameter=500,
        )
        circular.name = f"Circular #{i}"
        print(circular, circular.frame)

        # Rectangular beam
        rectangular = Beam.rectangular(
            frame=frame_with_point(frame, Point(0, 0, 3000)),
            length=4000,
            width=500,
            height=350,
        )
        rectangular.name = f"Rectangular #{i}"
        print(rectangular, rectangular.frame)

        # Triangular beam
        triangle_section = Polygon([(0, 0), (300, 0), (150, 259.8)])
        triangular = Beam.polygonal(
            frame=frame_with_point(frame, Point(0, 0, 5000)),
            length=4000,
            section=triangle_section,
        )
        triangular.name = f"Triangular #{i}"
        print(triangular, triangular.frame)

        # Hexagonal beam
        hexagon_section = create_hexagon_section(300)
        hexagonal = Beam.polygonal(
            frame=frame_with_point(frame, Point(0, 0, 8000)),
            length=4000,
            section=hexagon_section,
        )
        hexagonal.name = f"Hexagonal #{i}"
        print(hexagonal, hexagonal.frame)

        # Rotate frame along the Y-axis
        frame = frame.transformed(Rotation.from_axis_and_angle(frame.yaxis, radians(-90), frame.point))

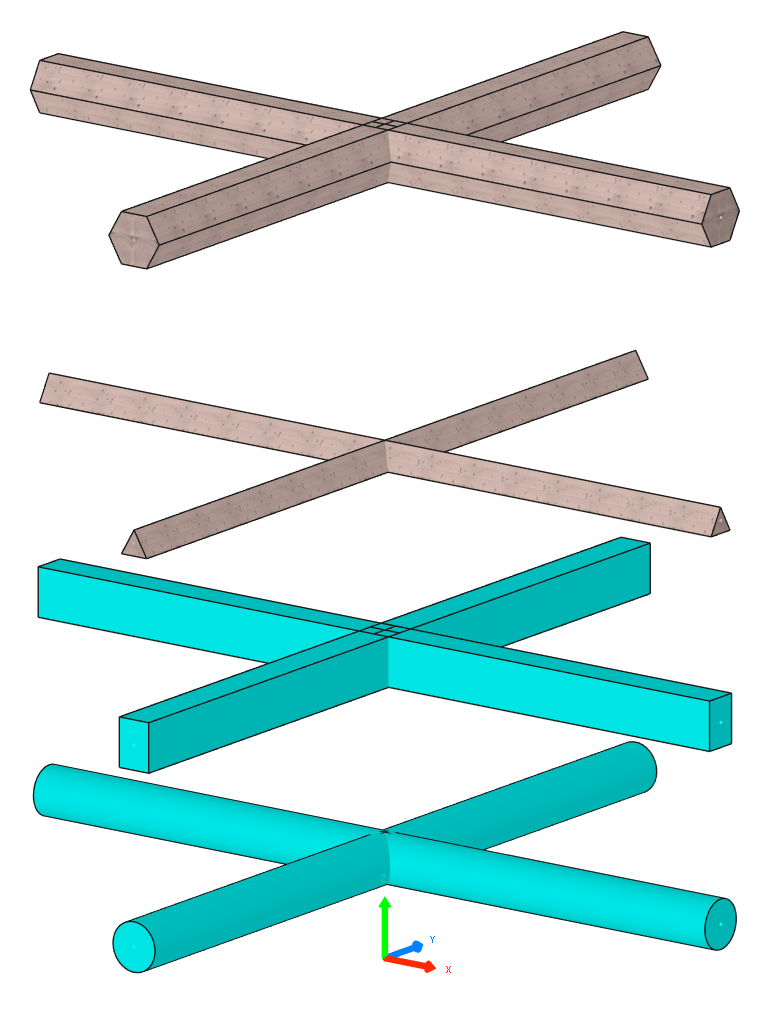

If run successfully, you should get the following output in Cadwork 3d:
